- Place of Origin: Hunan
- Brand Name: nongyou
- Model Number: HST
The company does not forget its social mission while developing, actively participates in public welfare undertakings, donated nearly RMB 3 million in recent years, and won the honorary title of "advanced enterprise in tax paying at Shuangfeng County" for four consecutive years. The legal representative Liu Ruoqiao (Tel. 15773879999) who won the "Hunan Charity Award" is a member of the National Agricultural Standardization Technical Committee, and provincial outstanding entrepreneur.
- Place of Origin: Hunan
- Brand Name: nongyou
- Model Number: HST

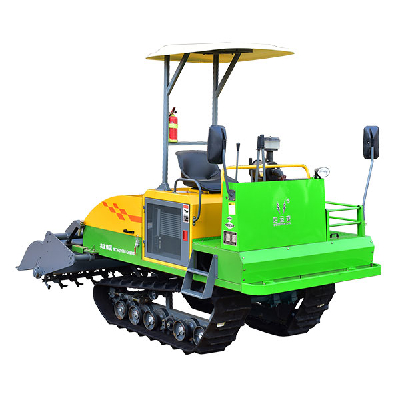

Rotary cultivator model | 1GZ-180 type | 1GZ-200 type | 1GZ-230 type | 1G Z-HST |
Matching power | New Chai 498 | New Chai 498 | New Chai 498 | New Chai 498 |
Supporting power(kw/r/min) | 48/2600 | 48/2600 | 65/2600 | 48/2600 |
Overall dimensions (mm) L * W * H | 3570x1900x2560 | 3570*2100*2560 | 3570*2380*2560 | 3570x1900x2560 |
Total Weight (Kg) | 1650 | 1670 | 1710 | 1650 |
Fuel consumption (kg / hm2) | 25-22 | ≤16 | ≤19 | 25-22 |
Working efficiency (hm2 / h) | 0.35-0.45 (5.25-6.75 mu / hour) | 0.4-0.51 (6--7.65 mu) | 0.43-0.55 (6.45-8.25 mu) | 0.35-0.45 (5.25-6.75 mu / hour) |
Track size (pitch X section number X width) | 0.35-0.45 (5.25-6.75 wood / descendant) | 90 mm × 48 knots × 400 mm | 90 mm × 48 knots × 400 mm | 90 mm × 48 knots × 400 mm |
Cultivated Width (mm) | 1800 | 2000 | 2300 | 1800 |
Tillage depth (mm) | Dry farming 80-150 | Dry farming 80-150 | Dry farming 80-150 | Dry farming 80-150 |
Hydroponics 100-180 | Hydroponics 100-180 | Hydroponics 100-180 | Hydroponics 100-180 | |
Gauge (mm) | 1040 | 1040 | 1040 | 1040 |
Highest speed (km / h) | ≤10 | ≤10 | ≤10 | ≤10 |
Rotary knife type | IT245 series | IT245 series | IT245 series | IT245 series |
Total number of rotary knife (to) | A total of about 48 machetes | A total of about 48 machetes | A total of about 88 machetes | A total of about 48 machetes |
Tool spindle speed (r / min) | 280-320 | 280-320 | 280-320 | 280-320 |
Minimum ground clearance (mm) | ≥390 | ≥390 | ≥390 | ≥390 |
Climbing performance | ≤45o | ≤45o | ≤45o | ≤45o |
Paddy field through the performance (mm) | Track subsidence not more than 250 can work | Track subsidence not more than 250 can work | Track subsidence not more than 250 can work | Track subsidence not more than 250 can work |
Width of trench bottom | 200mm | Paddy field tillage; double cropping rice paddy; | Paddy field tillage; double cropping rice paddy; | 200mm |
Trench depth | 200-300mm | Vegetable, tobacco, orchard shallow tillage | Vegetable, tobacco, orchard shallow tillage | 200-300mm |
Scope of application | Paddy field tillage; double cropping rice paddy; | 1GZ-200 type | 1GZ-230 type | Paddy field tillage; double cropping rice paddy; |
Vegetable, tobacco, orchard shallow tillage | New Chai 498 | New Chai 498 | Vegetable, tobacco, orchard shallow tillage |
